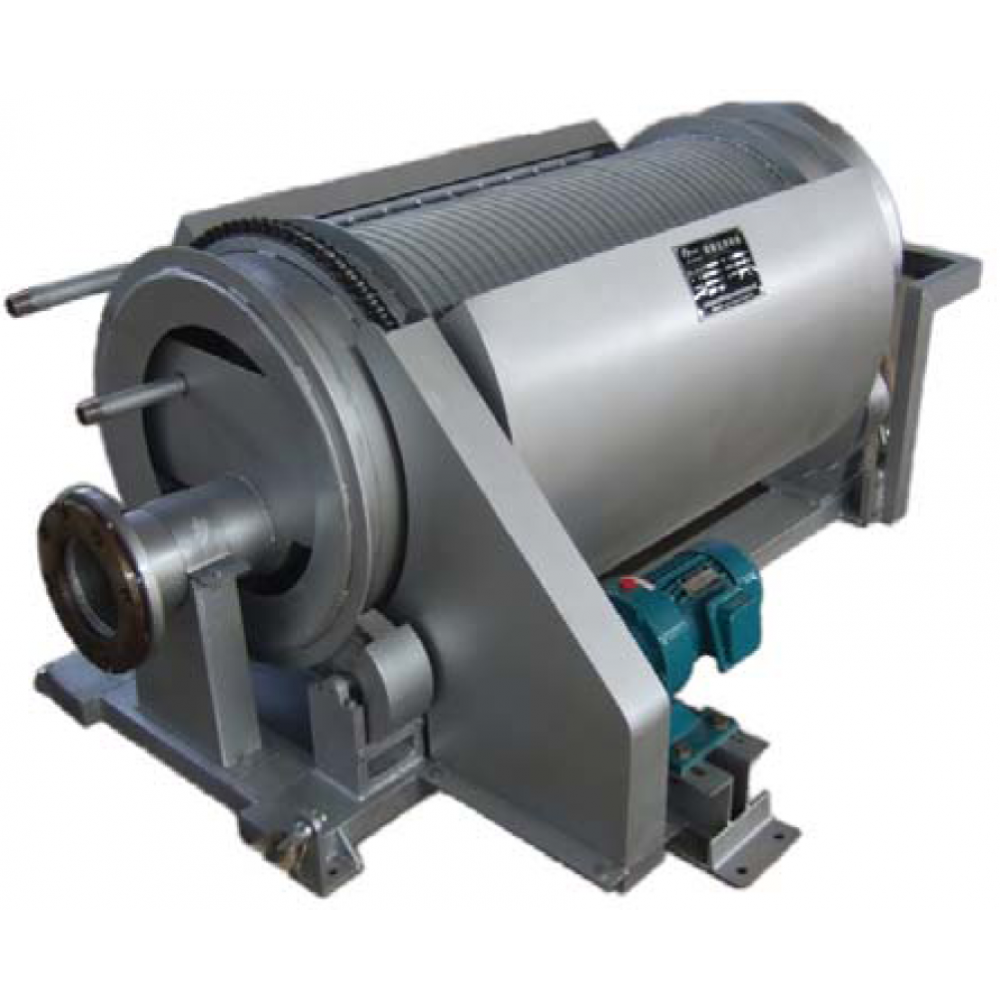

KLRS Rotating Drum Solid-Liquid Separator
1. Operational Principle
KLRS Rotating Drum Solid-Liquid Separator is a horizontal cylinder structure. It uses cycloidal pin gear speed reducer and chain drive. Wastewater flows from the inlet into the overflow channel and after stabilization, it gets distributed to the inner wall of rotated grating net. Water flow and grating net do relative motion which makes the filtrate discharge from the grating gap, and the residue is intercepted in the grating net. Then under the effect of guide plate, the residue will automatically discharge from the slag end.
2. Structure Features and Applications
Rotary Solid-liquid Separator is suitable for solid-liquid separation of various industrial wastewaters. It could remove tiny particles whose diameter is more than 0.22mm. The machine is more suitable for papermaking, wood based panel, leather, printing and dyeing, butchery, wine-making, and textile industry doing wastewater treatment.
Filter mesh cylinder uses the screen mesh which is made of the reverse-trapezoidal section and stainless steel grating. The advantages of machine are reliable and solid, no clogging, corrosion resistance, and easy to clean.
3. Main Technical Parameters
4. Dimension Table
5. Equipment Outline and Schematic Diagram
6. Dimension Table
