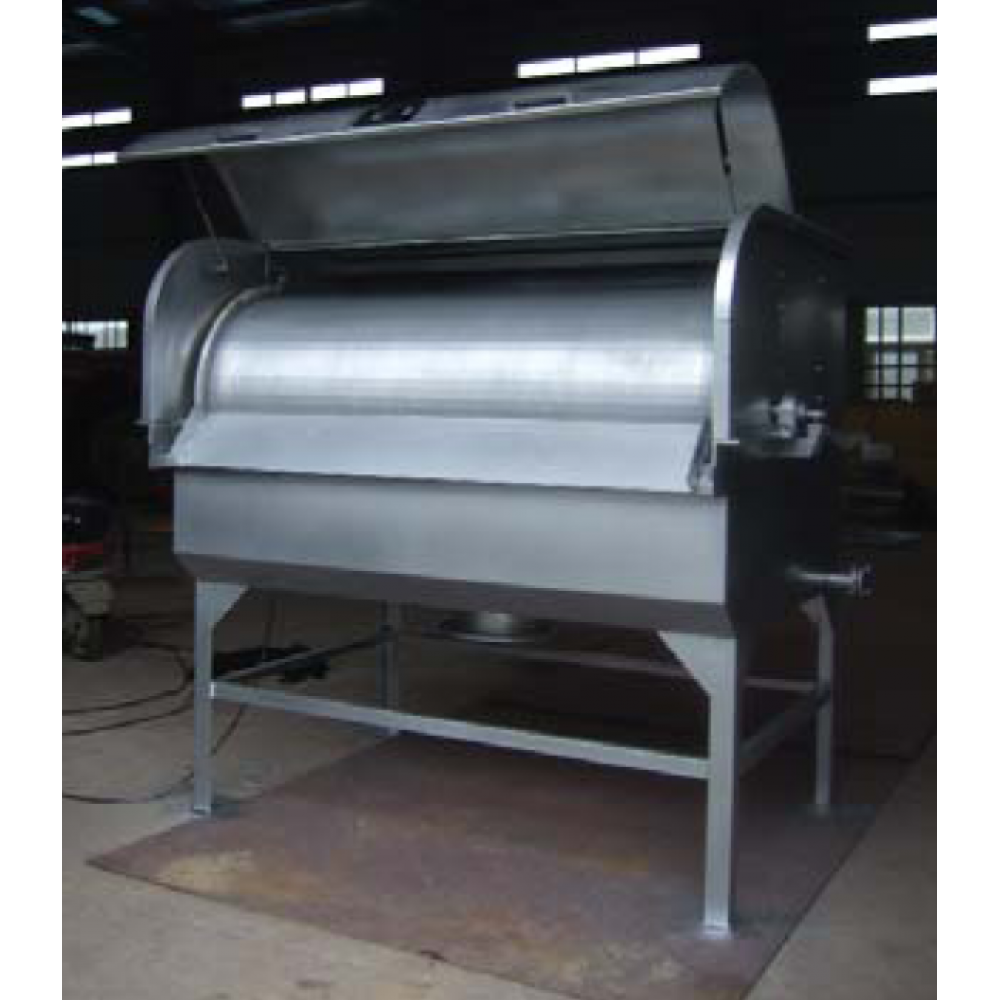

KLR Rotating Drum Screen
1. Operational Principle
KLR Rotating Drum Screen uses the outside-in flow method. The wastewater enters into the water tank through the water inlet and the purified water flows into cylinder through the grating net gap. The discharge is at the bottom of the cylinder and the grating net is cleaned at the same time. Impurities (which are bigger than the net gap) are blocked by the grating net and are attached to the net cylinder surface. Impurities are taken to the other end by rotating net cylinder, lastly unloading, and then the filtered wastewater is discharged through the outlet. Grating net cylinder is driven through AC variable speed motor.
2. Structure Features and Applications
This machine is suitable for removing minor non-viscous fi ber organic matter in wastewater. Rotary net cylinder uses trapezoidal cross-section stainless steel bar to weld together. The advantages are compact structure, small occupied space, reliable and stable operation, easy to install.
3. Main Technical Parameters
4. Outline Dimension Table
5. Equipment Outline and Schematic Diagram
